HALO® C30 - Alternative selectivity for hydrophobic substances

Isomer separatons in applications such as: Lipids, steroids carotenoids and vitamins

Characteristics of the HALO® C30 Fused-Core® column

  • excellent shape selectivity for long-chained hydrophobic, structurally related compounds
  • excellent reproducibility
  • compatible with 100% aqueous mobile phase

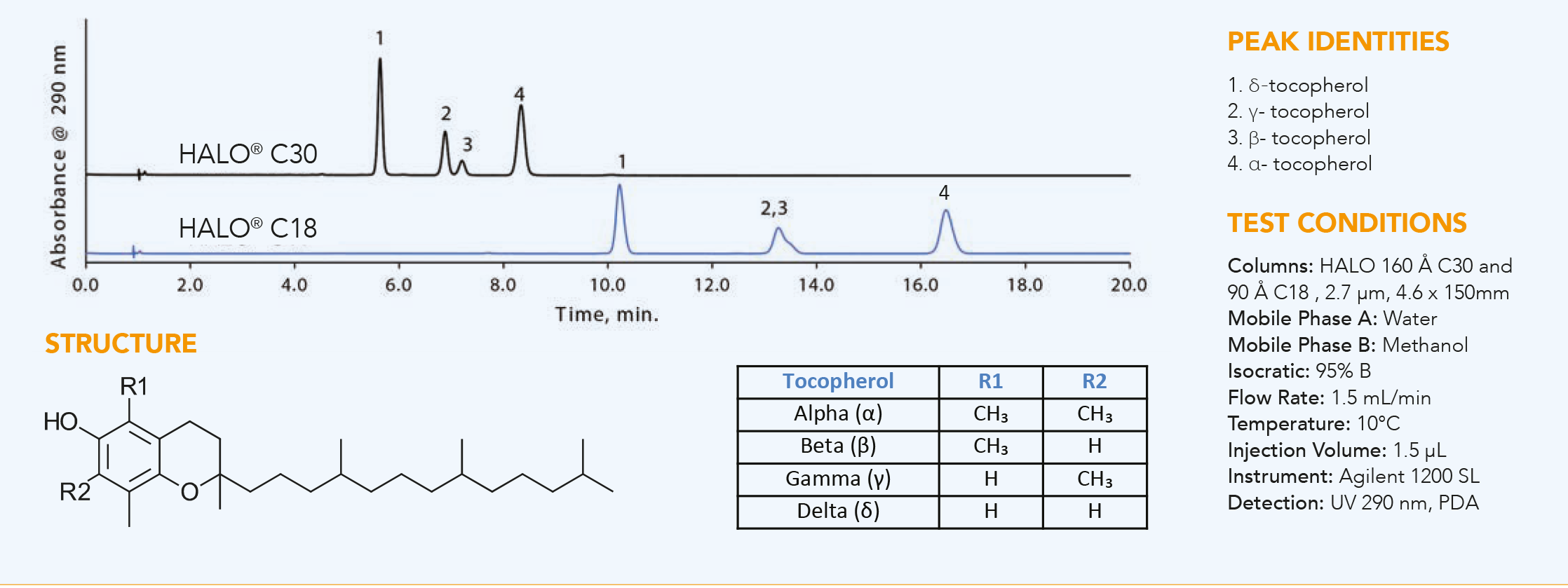

Tocopherols, a form of vitamin E, known for their antioxidant properties, contain many isomers which are easily baseline separated on the HALO® C30 compared to a C18 due to the shape selectivity property of the phase.


Technical data of the HALO® C30 column:

Particle size 2.7 µm
Pore size 160Å
Carbon load 9.9 %
Endcapping yes
pH limit 2.0 - 9.0

Temperature limit:
60°C at low pH
40°C at low pH


Order information

HALO® C30 with 2.1 mm ID
8AM-92112-230 ► 2.7µm • 2.1 x 20 mm
8AM-92112-330 ► 2.7µm • 2.1 x 30 mm
8AM-92112-430 ► 2.7µm • 2.1 x 50 mm
8AM-92112-530 ► 2.7µm • 2.1 x 75 mm
8AM-92112-630 ► 2.7µm • 2.1 x 100 mm
8AM-92112-730 ► 2.7µm • 2.1 x 150 mm
8AM-92112-930 ► 2.7µm • 2.1 x 250 mm

8AM-92112-130 ► Guard column 2.1 x 5 mm

HALO® C30 with 3.0 mm ID
8AM-92113-230 ► 2.7µm • 3.0 x 20 mm
8AM-92113-330 ► 2.7µm • 3.0 x 30 mm
8AM-92113-430 ► 2.7µm • 3.0 x 50 mm
8AM-92113-530 ► 2.7µm • 3.0 x 75 mm
8AM-92113-630 ► 2.7µm • 3.0 x 100 mm
8AM-92113-730 ► 2.7µm • 3.0 x 150 mm
8AM-92113-930 ► 2.7µm • 3.0 x 250 mm

8AM-92113-130 ► Guard column 3.0 x 5 mm

HALO® C30 with 4.6 mm ID
8AM-92114-230 ► 2.7µm • 4.6 x 20 mm
8AM-92114-330 ► 2.7µm • 4.6 x 30 mm
8AM-92114-430 ► 2.7µm • 4.6 x 50 mm
8AM-92114-530 ► 2.7µm • 4.6 x 75 mm
8AM-92114-630 ► 2.7µm • 4.6 x 100 mm
8AM-92114-730 ► 2.7µm • 4.6 x 150 mm
8AM-92114-930 ► 2.7µm • 4.6 x 250 mm

8AM-92114-130 ► Guard column 4.6 x 5 mm

HALO® C30 with 10 mm ID
8AM-92110-402 ► 2.7µm • 10 x 50 mm
8AM-92110-502 ► 2.7µm • 10 x 75 mm
8AM-92110-602 ► 2.7µm • 10 x 100 mm
8AM-92110-702 ► 2.7µm • 10 x 150 mm

Guard column holder 94900-001
